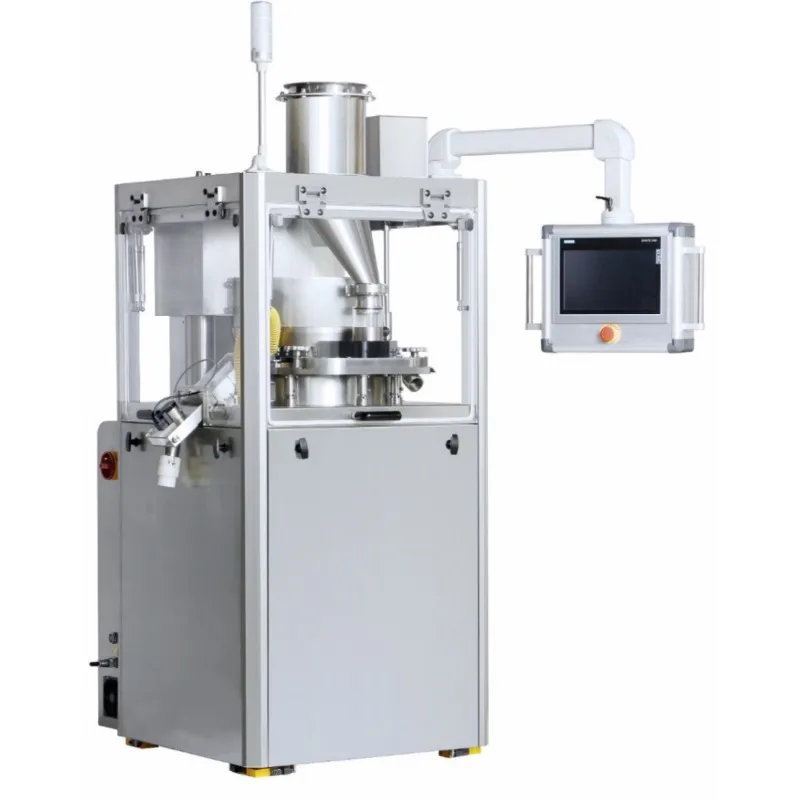

Features:
1. PLC-based control system, automatic protection functions;
2. Touch screen controls, English language;
3. The unit of forced loading of raw materials, increased the ability to load powder, solved the problem of stratification of large and small granules;
4. Central automatic lubrication system;
5. Forming in two cycles - the main and pre-pressing;
6. Conforms to GMP;
7. Easy to disassemble and clean.
| Technical Parameters | ||||
| Model | GZPK26 | GZPK32 | GZPK40 | GZPK50 |
| Punch pin number | 26 | 32 | 40 | 50 |
| Punch Type (IPT) | D | B | BB | TF16 |
| Production range(10,000 tablets/h) | 34000~171000 | 42000~211000 | 52000~264000 | |
| Rotating speed (rmp) | 22~110 | |||
| Maximum main pressure | 100KN | |||
| Maximum pre-pressure | 20KN | |||
| Maximum filling depth | 20mm | 16mm | 16mm | 16mm |
| Tablet thickness range | 0.5~9mm | |||
| Maximum tablet diameter | Ф25mm | Ф16mm | Ф13mm | Ф10mm |
| Maximum abnormal axis size | <25mm | <19mm | <16mm | <11mm |
| Die diameter | Ф38.10mm | Ф30.16mm | Ф24.00mm | Ф19.00mm |
| Plunger diameter | Ф25.35mm | Ф19.00mm | Ф19.00mm | Ф16.00mm |
| Plunger length | 133.60mm | |||
| Working noise | ≤70dB | |||
| Total power | 7.5KW/380V,50Hz,7.5KW/380V, 50Hz, three-phase five-wire system | |||
| Bounday dimension of equipment | 820×1100×1750 mm | |||
| Net weight of equipment | 1,450kg | |||
