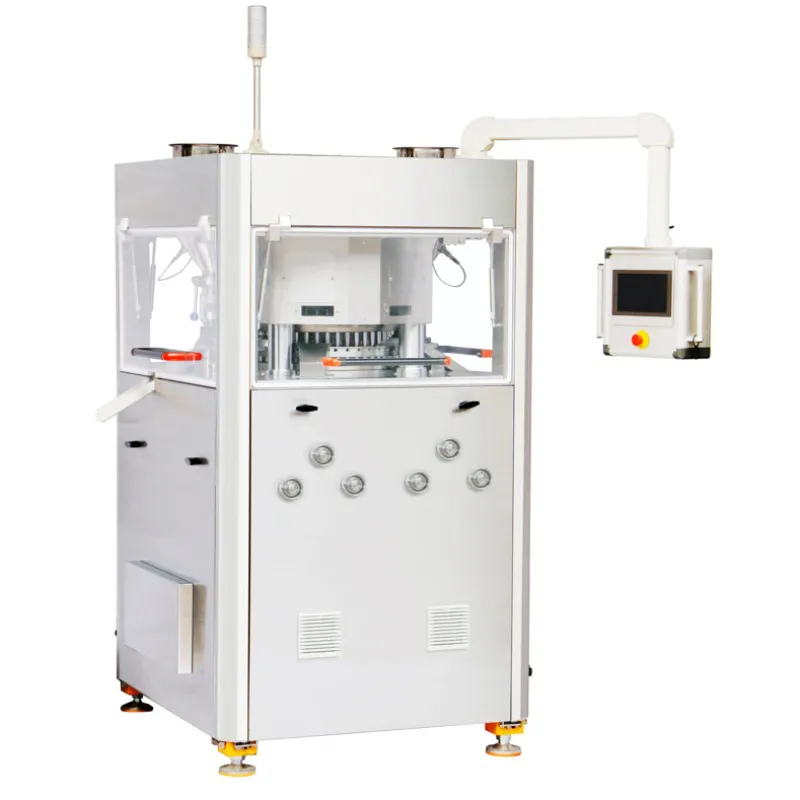

GZP550 series tablet press is a rotary double-discharge high-speed tablet press, which realizes the conversion of materials from granules, powders to tablets, and can press ordinary round sheets, large shaped pieces, special-shaped tablets, single-sided engraving tablets, cartoon tablets, etc.; Suitable for traditional Chinese medicine granules, wet and dry granulation tablets.
| Technical Parameters | ||||
| Model | GZPK39 | GZPK47 | GZPK57 | GZPK61 |
| Punch pin number | 39 | 47 | 57 | 61 |
| Punch Type (IPT) | D | B | BB | BBS |
| Production range(tablets/h) | 22000~224640 | 27000~270720 | 32000~320328 | 35000~351360 |
| Rotating speed (rmp) | 5~48 | |||
| Maximum main pressure | 100KN | |||
| Maximum pre-pressure | 100KN | |||
| Maximum filling depth | 18mm | 18mm | 18mm | 18mm |
| Maximum tablet diameter | Ф25mm | Ф16mm | Ф13mm | Ф11mm |
| Maximum abnormal axis size | <25mm | <19mm | <16mm | <13mm |
| Die diameter | Ф38.10mm | Ф30.16mm | Ф24.00mm | Ф21.00mm |
| Plunger length | 133.60mm | |||
| Working noise | ≤75dB | |||
| Total power | 11KW/380V,50Hz, | |||
| Bounday dimension of equipment | 1300*1100mm | |||
| Net weight of equipment | 4200kg | |||
